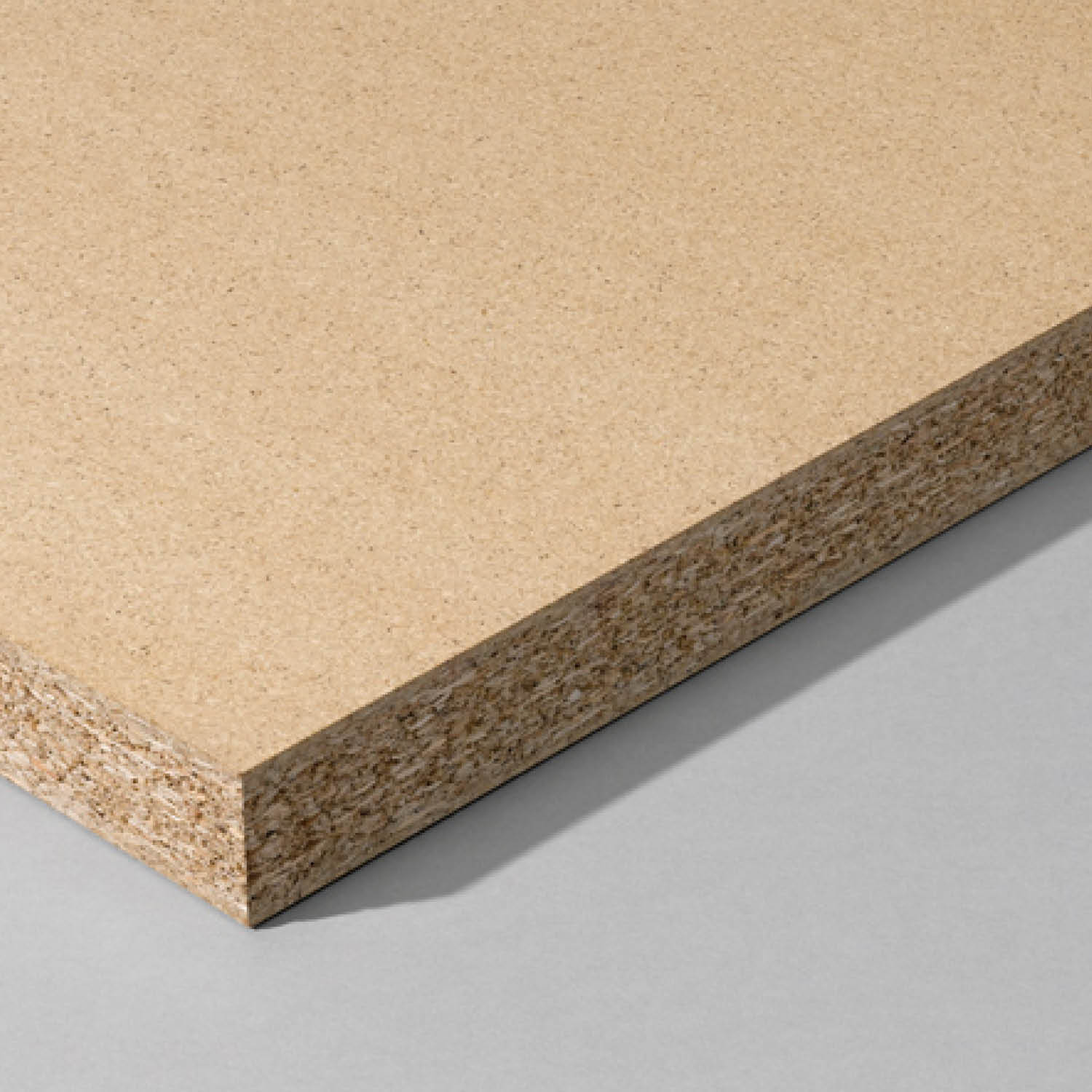

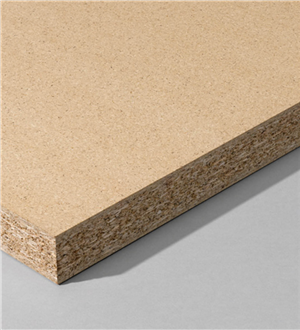

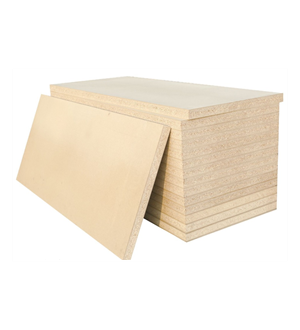

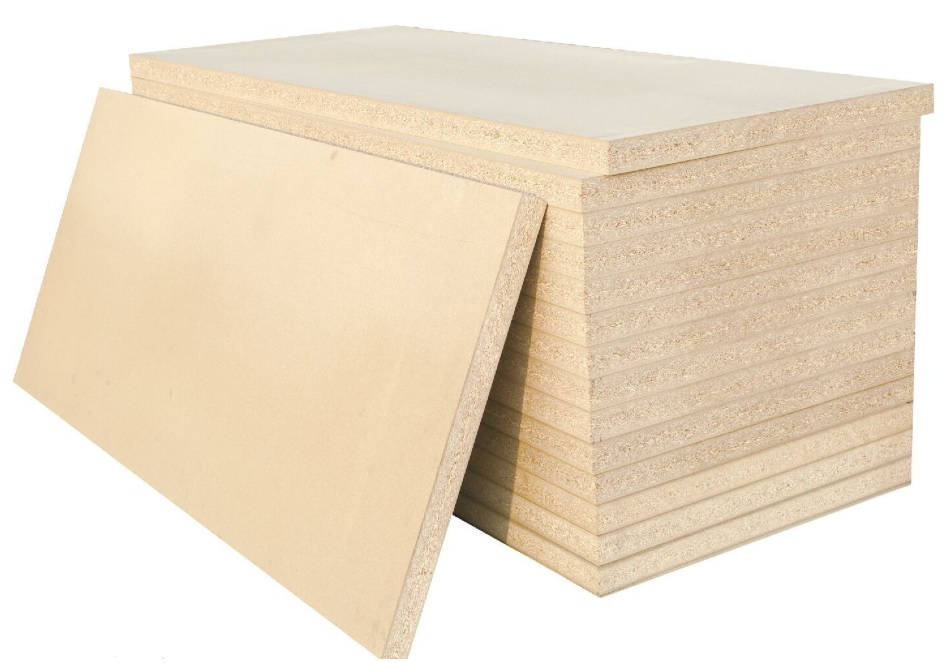

NovABoarD - 30 MINUTES FIRE RESISTANT BOARD

NovABoarD (fire rated particle boards) is an engineered wood product, 100% recycled and manufactured from of selected recycled softwood, hard wood, vermiculite, resin, sawmill residues, carpenter’s residues, which is pressed. NovABoarD had been designed, developed and tested according to the British standard (B.S 467 Part 22) to achieve Fire Rating 30 Min.



PRODUCT DATA SHEET       MECHANICAL & PHYCAL PROPERITIES





TYPE:

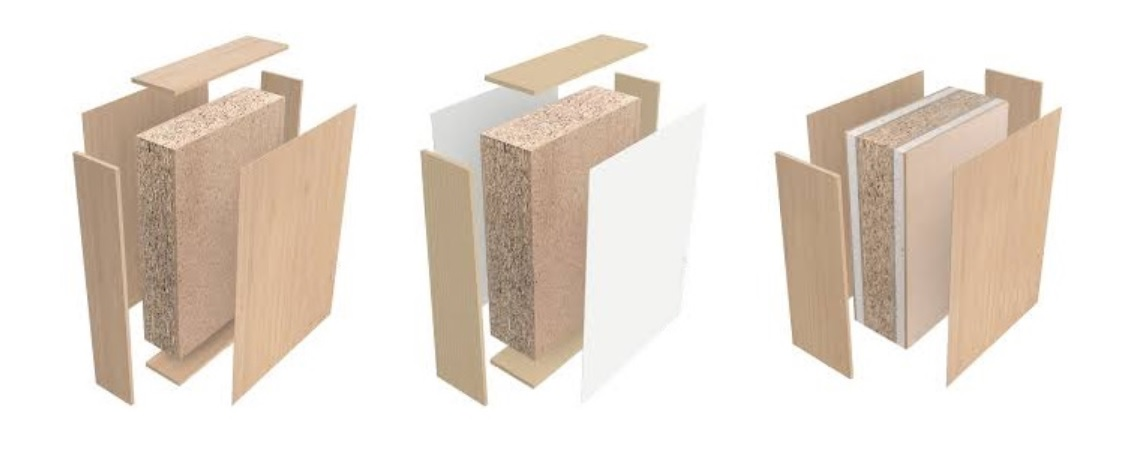

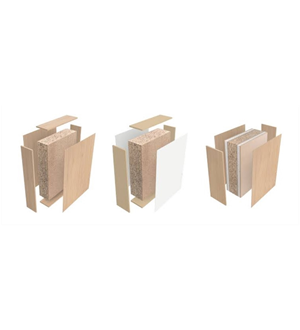

Three Layer particleboard with high performance Confirm to BS Standards



COMPOSITION:

100% of selected recycled softwood , hard wood Vermiculite, resin, sawmill residues,carpenters residues



FIRE PERFORMANCE STANDARD:

BS 476 Part 22



ASSESSMENT REPORT:

PAR 01/10346 Rev.C&Chilt /A12067 Rev.B



FIRE BEHAVIOR CATEGORY:

Resist Fire for 30 Min.



CERTIFICATION:

IFC – FRTD 483 / BM TRADA -589



GREEN PRODUCT:

FSC – TT-COC-004433



ENVIRONMENT FOOT PRINT:

100% Recycled product



DENSITY:

600 Kg/m3 +-10

WATER ABSORPTION:

6.72%

MOISTURE CONTENT:

08-10 +-2



BOARD THICKNESS:

44mm +-0.3



BOARD SIZE:

935 x 2135 x 44 mm ,  1220 x 2440 x 44 mm

BOARD SURFACE:

------------------------------------------

EMISSION CLASSIFICATION:

E1 according to EN 120 Content <24 mg/100g

ACOUSTIC PERFORMANCE :

Has  potential to provide RW 34 dB when used with suitable seal

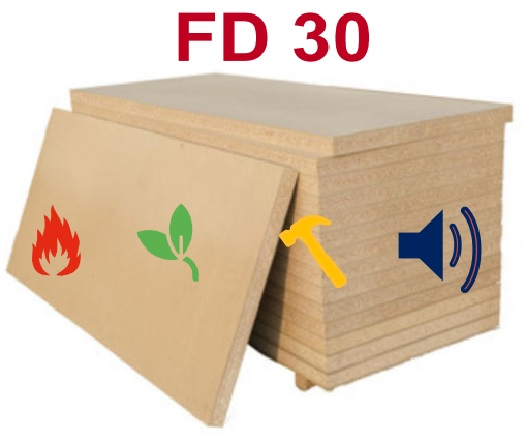

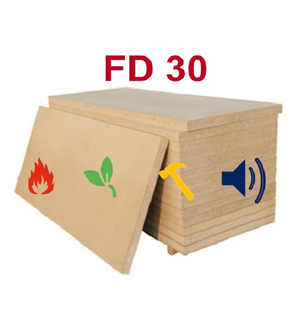

FD30 DATASHEET





FD30 DRAWINGS





FD30 TECHNICAL MANUAL SUPPORT
